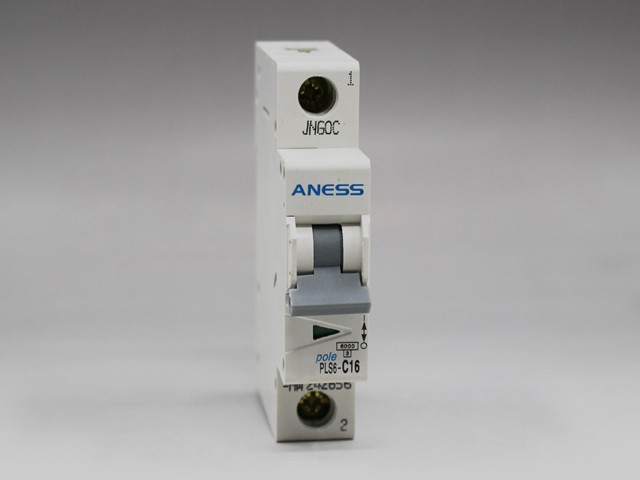

Protection
|
Overload and short circuit
|
Standard conformity
|
IEC: 60898
|
Type/series
|
B
|
C
|
D
|
Rated current(In)
|
A
|
6-63
|
6-63
|
6-63
|
Rated voltage(ac)(Ue)
|
V
|
240/415
|
240/415
|
240/415
|
Rated frequency(f)
|
Hz
|
50/60
|
50/60
|
50/60
|
Nos. of poles(Execution)
|
1P, 1P+N, 2P, 3P, 3P+N,4P
|
Rated short circuit breakering capacity
|
KA
|
4.5/6/10
|
4.5/6/10
|
4.5/6/10
|
Utilization category
|
|
|
|
Magnetic release setting
|
(3-5)In
|
(5-10)In
|
(10-20)In
|
Rated insulation voltage(Ui)
|
V
|
660
|
660
|
660
|
Rated impulse voltage(Uimp)
|
KV
|
4
|
4
|
4
|
Electrical/Mechanical
|
less than 32A
|
20000
|
20000
|
20000
|
Endurance(no. of operations)
|
more than 32A
|
10000
|
10000
|
10000
|
Ambient temperature
|
℃
|
-5 to +55
|
-5 to +55
|
-5 to +55
|
Terminal capacity(max)
|
sq.mm
|
25
|
25
|
25
|
Protection class
|
IP20
|
Installation postion
|
Vertical/Horizontal
|

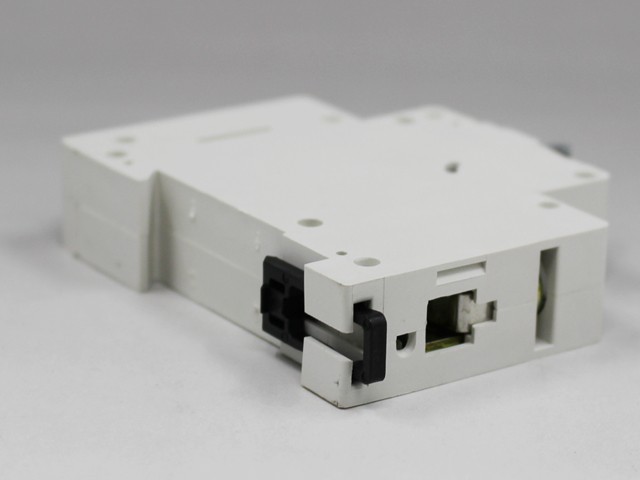

Mounting
|
Clip on DIN rail(35mm*7.5mm)
|
Case&Cover
|
Moulded, flame retardant thermoplastic material
|
|
B
|
C
|
D
|
Trip time
|
Thermal Trip
|
I1
|
1.13×In
|
1.13×In
|
1.13×In
|
≥1h
|
I2
|
1.45×In
|
1.45×In
|
1.45×In
|
<1h
|
Megnetic Trip
|
I3
|
3×In
|
5×In
|
10×In
|
≥0.1s
|
I4
|
5×In
|
10×In
|
20×In
|
<1s
|
