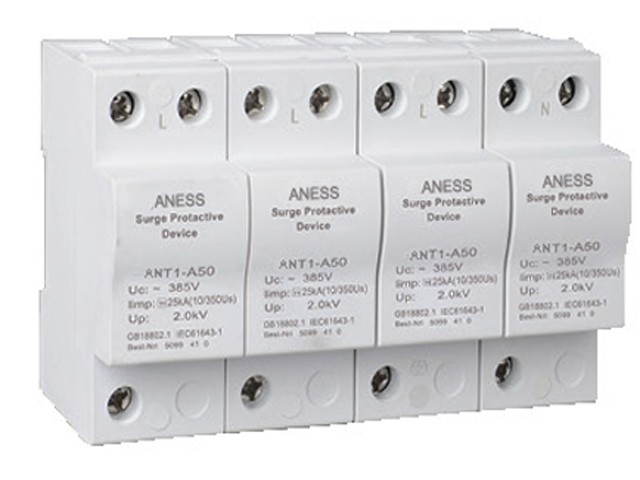

ANT1-A50 series of graphite gap type surge protective device(a Lightning arrester, 10/35 μs waveform) 3 according to IEC and GB standards.
Equipment system used in high risk area of the power supply of the first primary surge protection. Can prevent lightning strike, all kinds of surge current, pass A combination of different number of suitable to single-phase. Three-phase power supply line. dieModular design, standard 35mm rail mounted, installed in the building The total power distribution cabinet(box),outdoor distribution cabinet(box),with lightning current high. The discharge capacity,free wheeling,single module maximum impulse current (10/35 μS)Sbranc Don’t reach limp=15KA,limp=25KA,limp=35KA ,limp=50KA maxim umdischarge current (8/20 μS) Can reach Imax=100KA,Imax=150KA,Imax=160KA,Imax=200KA.
